SIC MOSFET Module 1200V/36A
PEM.PLUGYHP.LEG.05.A.1200.36
Description:

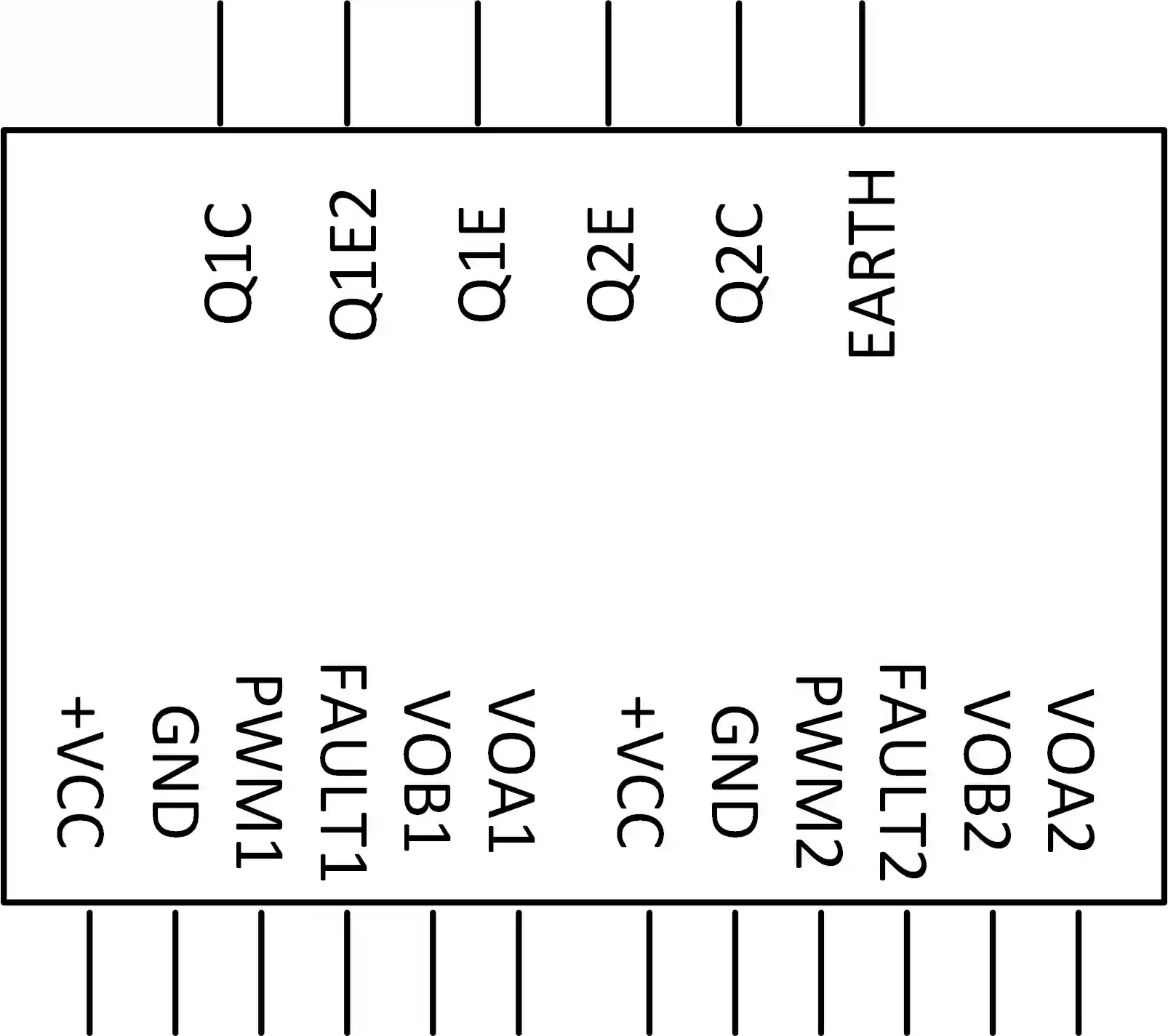

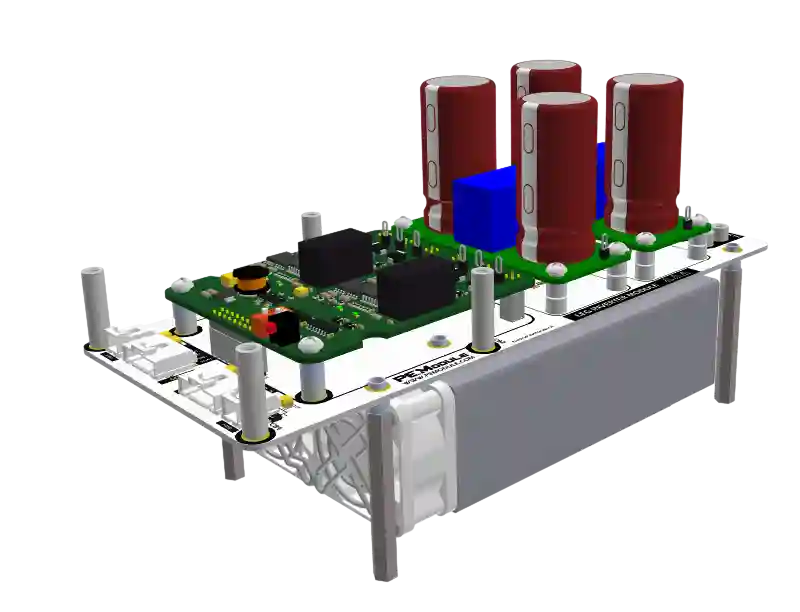

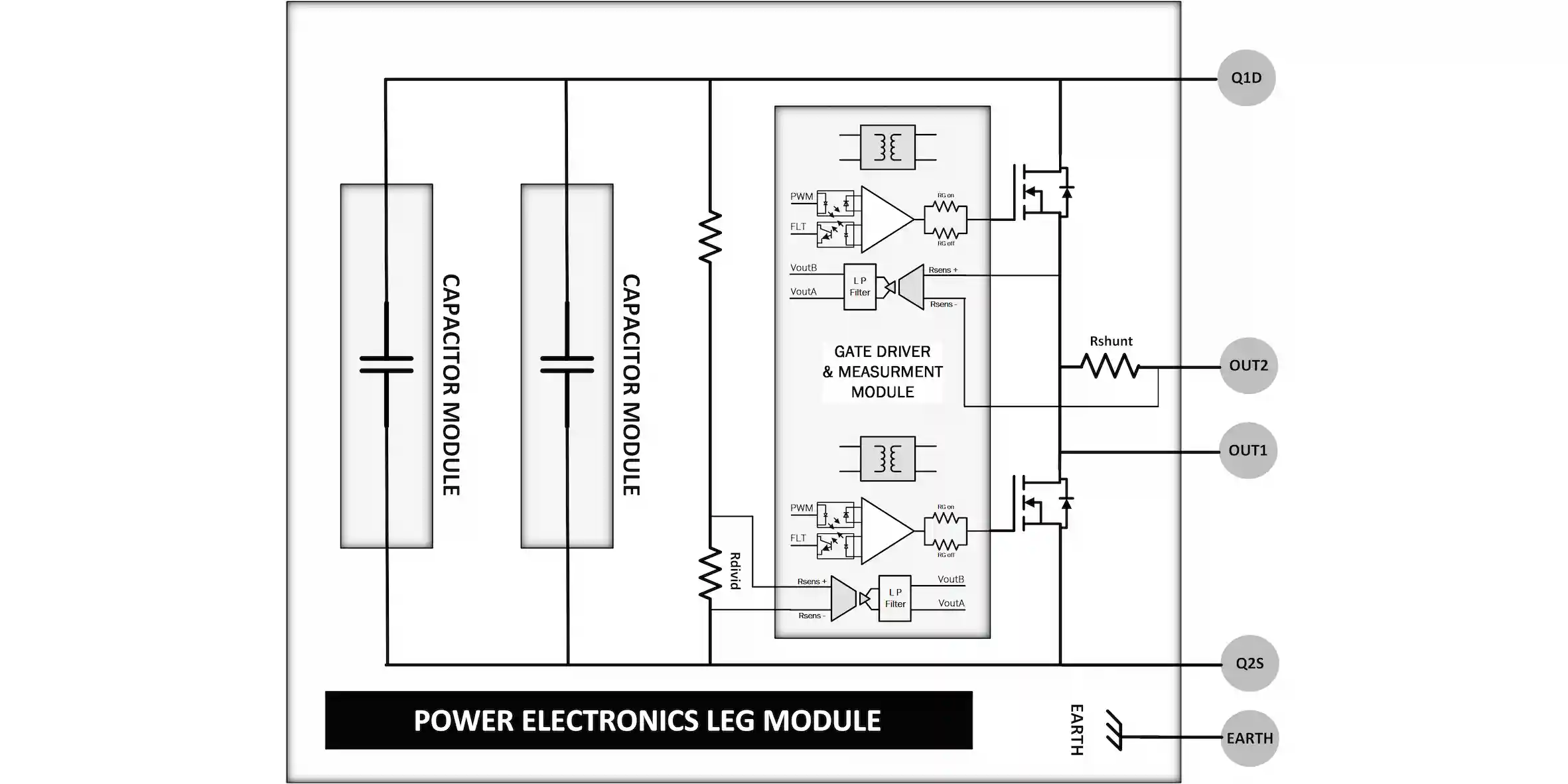

The PEModule PLUGY HP System offers High-performance Half-Bridge based on SiC MOSFET including with modular DC-Link Capacitors, and modular high-performance gate driving, voltage and current measurement with high level of opto-isolation option.
Main Features:
- Pluggable and easy for replacement in case of failure.
- High Current Low ESR DC-Link DC Film capacitors
- Based on 1200V/36A high-performance SiC MOSFET for fast switching applications.
- Easy for replacement Pluggable DC-link Capacitor Sub Modules based on Electrolytic or DC Film Capacitor (different voltage and capacitance values).
- Easy for replacement Pluggable Gate Driver Sub Modules.
- Option Forced Air Convection cooling up-to 120W Power dissipation.
- On-Board Shunt resistor for output current measurement.
- On-Board DC Link Voltage Divider resistor for DC Link Voltage measurement
- Extendable can be repeated for any number of phases or levels.
Follow us!
Follow us!
Module SIC MOSFET Specifications
Module SIC MOSFET Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Drain-Source Voltage (DC Link) | V DS | 800 | V |
| Drain Continues Current (1) | I D | 26 | A |
| Static Drain-to-Source On-Resistance (2) | R DS(on) | 106 | mΩ |
| Turn-off energy (3) | Eoff | 52 | μJ |
Turn-on energy (3) | Eon | 217 | μJ |
Total switching energy (3) | Etot | 269 | μJ |
Diode forward voltage (4) | VSD | 4.4 | V |
| Reverse recovery time (5) | trr | 15 | nS |
| Reverse recovery charge (5) | Qrr | 64 | nC |
| Reverse recovery current (5) | Irr | 4 | A |
| Thermal resistance diode junction to case | RthDJA | 1.9 | C/W |
| Thermal resistance case to ambient for the module | RthCA | 3.4 | C/W |
(1) VDS =1200 V, VGS = 0 V.
(2) VGS= 15V, ID = 20A, TTJ = 175 C.
(3) VGS = -5/15 V, TC = 25 C, RG(ext)= 8 Ω, VDD = 800 V, ID = 20A.
(4) TTJ = 175 C, VGS = -5VDC, IF = 10A.
(5) VR = 800 V, IF = 10A.
Module Gate Drive Specifications
Module Gate Drive Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Input Supply Voltage | VCC1 | +5 | V |
| Input Supply Current | ICC1 | 300 | m A |
| Input signal High level | VinHL | 5 or 2 | V |
| Turn on output voltage | Vgon | 20 | V |
| Turn off output voltage | Vgoff | -8 | V |
| Isolation Voltage | Viso | 5000 | V |
| Switching Frequency | Fsw | 200 | KHz |
| Propagation Delay Time | tPLH | 110 | ns |
| Propagation Delay Time | tPHL | 110 | ns |
